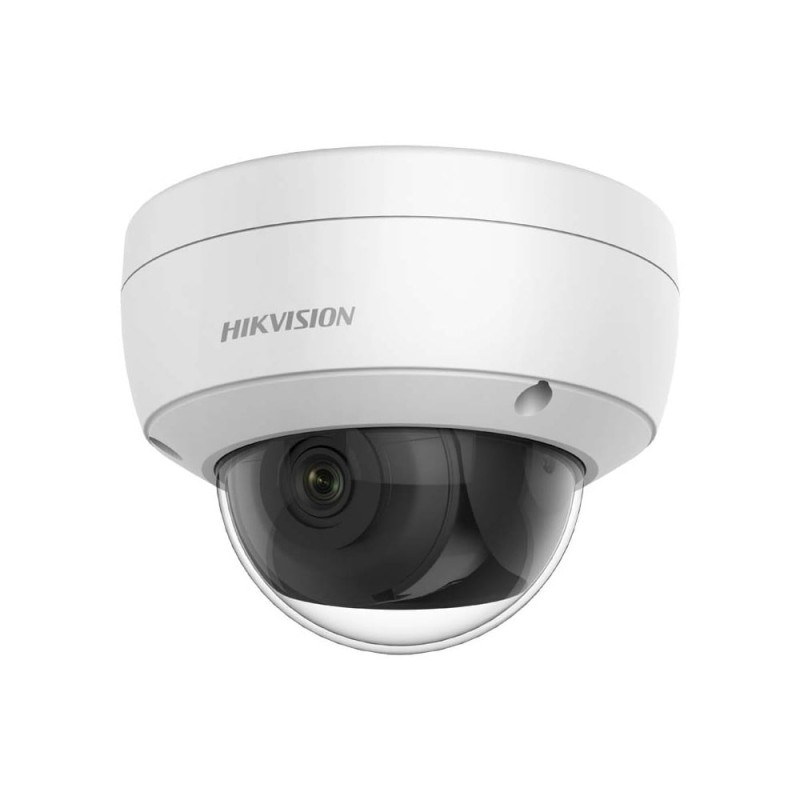

Camera Image Sensor 1/1.8" Progressive Scan CMOS Shutter Speed 1/3 s to 1/100,000 s Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Slow Shutter Yes P/N P/N Wide Dynamic Range 120 dB Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
Lens Mount M12 Iris Type Fixed Aperture F1.6 Working Distance 2.8 mm: 2.6 m to ∞
4 mm: 3.2 m to ∞
DORI DORI 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
Illuminator Supplement Light Type IR Smart Supplement Light Yes IR Wavelength 850 nm IR Range Up to 30 m Video Max. Resolution 3840 × 2160 Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile H.264+ Main stream supports H.265+ Main stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Audio Type -U: mono sound Environment Noise Filtering -U: Yes Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Network Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image SNR ≥ 52 dB Target Cropping Yes Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Built-in Microphone -U: Yes Audio -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm -S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA) Hardware Reset Yes Event Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
-S: alarm input and output
Smart Event Scene change detection Deep Learning Function Face Capture Yes Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification
General Camera Material Metal Screw Material SUS304 Camera Dimension Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6") Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6") Camera Weight Approx. 590 g (1.3 lb.) With Package Weight Approx. 850 g (1.9 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Linkage Method Upload to FTP/memory card/NAS, notify surveillance center, send email, trigger recording, trigger capture
-S: trigger alarm output, audible warning
Firmware Version V5.5.112 Power Consumption and Current 12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
Power Supply 12 VDC ± 25%
PoE: 802.3af, Class 3
Power Interface Ø5.5 mm coaxial power plug Web Client Language 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Software Reset Yes Approval EMC FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Reference
KIP2CD2186G2ISUF2.8
