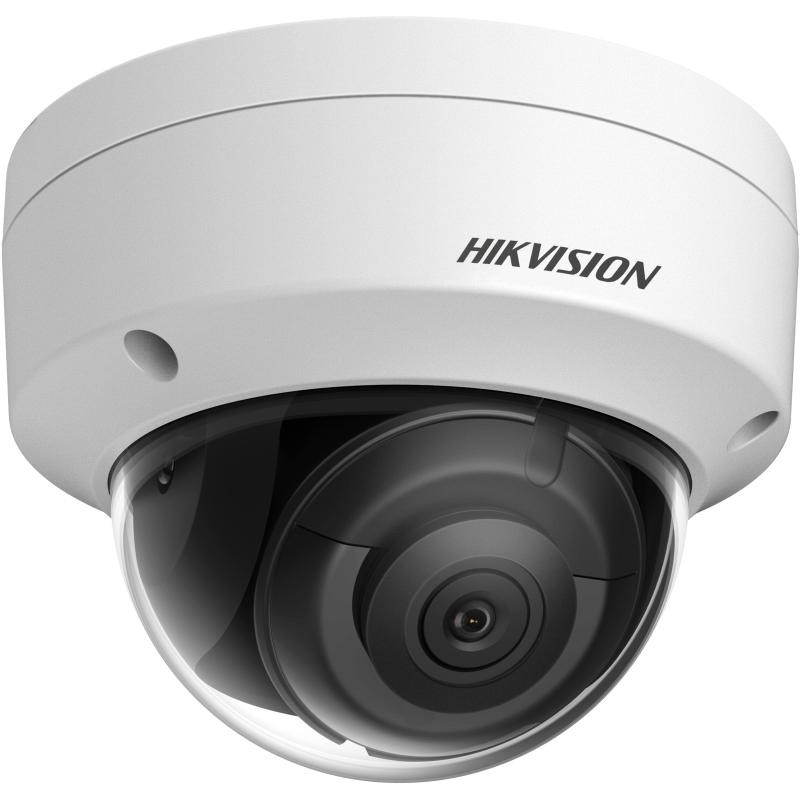

Hikvision Dome DS-2CD2163G2-LIS2U F2.8 (white, 6MP, AcuSense, 30 m IR, 30 m LED, Hybrid Light, IK10)

SKU:DS-2CD2163G2-LIS2U

Availability: Out-of-Stock

High quality imaging with 6 MP resolution
Acusense: human and vehicle classification based on deep learning
Smart Hybrid Light: integrates IR and white lights with 4 supplemental lighting modes
-2U: Built-in dual microphone for real-time high-quality audio security
Clear imaging against strong back light due to true 120 dB WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP67) and vandal-resistant (IK10)

I agree to the terms and conditions and the privacy policy Read the terms and conditions of use.

€158.57

Tax included

Description
Product Details

General
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day / NightIR cut filter
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Lens TypeFixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV2.8 mm: horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm: horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Lens MountM12
Iris TypeFixed
ApertureF1.6
Depth of Field2.8 mm: 1.8 m to ∞; 4 mm: 3.1 m to ∞
DORI2.8 mm: D 76 m, O 30 m, R 15 m, I 7 m; 4 mm: D 115 m, O 45 m, R 23 m, I 11 m
Supplement Light TypeIR, White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm
Main Stream50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), supported under certain settings
Video CompressionMain: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline, Main, High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Bit Rate ControlCBR, VBR
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Target CroppingYes
Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering-2U: Yes
Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
User/HostUp to 32 users; administrator, operator, user
SecurityPassword protection, complex password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication, TLS 1.1/1.2/1.3, WSSE authentication
Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); memory card encryption and health detection supported with high-end Hikvision card
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserIE 11 (plug-in required); plug-in free: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters SwitchYes
Image SettingsRotation mode
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask8 programmable polygon privacy masks
Ethernet Interface1 RJ45 10/100 Mbps self-adaptive Ethernet port
Audio Interface-2U: built-in dual-microphone array; -S: 1 line in (3.3 Vpp, 4.7 kΩ), 1 line out (3.3 Vpp, 100 Ω)
On-Board StoragemicroSD/microSDHC/microSDXC up to 512 GB
Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset KeyYes
Basic EventMotion detection (human/vehicle), video tampering alarm, exception
Smart EventFace detection
LinkageFTP/NAS/memory card upload, notify center, email, trigger recording/capture, -S: trigger alarm output
Perimeter ProtectionLine crossing, intrusion (human/vehicle)
Power12 VDC ±25%, 0.65 A, max. 7.8 W; PoE IEEE 802.3af Class 3, max. 9.5 W
MaterialBase: aluminum alloy; cover: aluminum alloy
DimensionØ121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
WeightApprox. 600 g (1.3 lb.)
With Package WeightApprox. 840 g (1.9 lb.)
Storage Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
Language33 languages including English, French, German, Spanish, Russian, Chinese, Japanese, Korean
General FunctionHeartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
EMC ApprovalCE-EMC EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3; RCM; IC; KC
SafetyIEC/EN 62368-1; BIS IS 13252; LOA IEC/EN 60950-1
EnvironmentCE-RoHS, WEEE, REACH
ProtectionIP67, IK10
Anti-Corrosion ProtectionNo specific anti-corrosion protection
