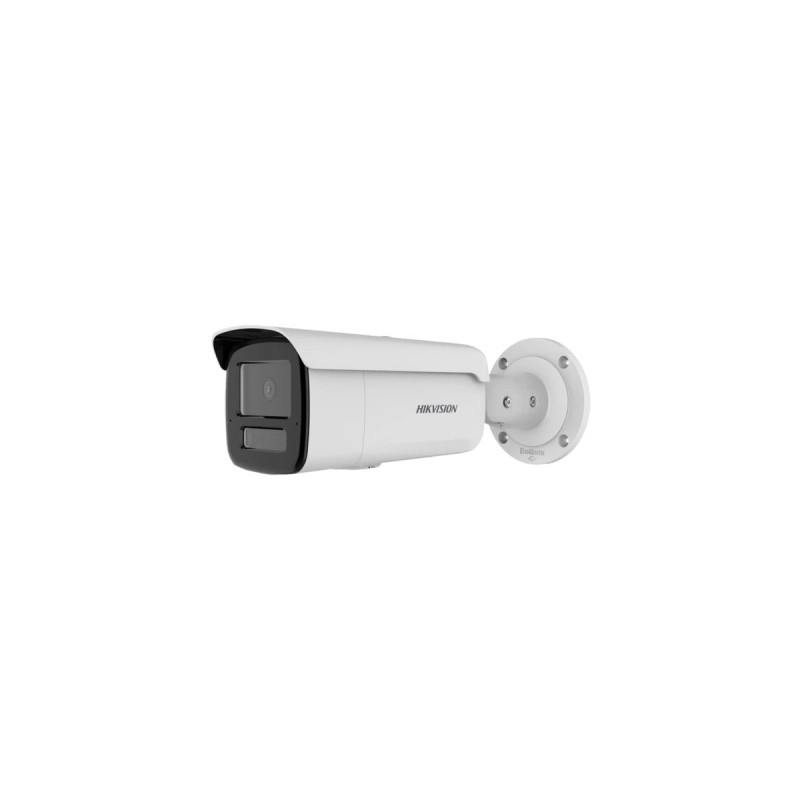

Hikvision Bullet DS-2CD2T63G2-4LI2U F2.8 (white, 6MP, AcuSense, IR+LED 80 m)

SKU:KIPDS2CD2T63G24L2U28

Availability: On Stock

High quality imaging with 6 MP resolution
Acusense: Focus on human and vehicle classification based on deep learning
Smart Hybrid Light: Integrates IR and white lights, 4 supplemental lighting modes
-2U: Built-in arrayed dual-microphone for real-time high quality audio security
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP67) and vandal-resistant (IK10)

€148.72

Tax included Delivery within 1–3 business days

Description
Product Details

General
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens TypeFixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
Focal Length & FOV2.8 mm: horizontal 105°, vertical 55°, diagonal 127°; 4 mm: horizontal 78°, vertical 38°, diagonal 96°; 6 mm: horizontal 51°, vertical 26°, diagonal 59°
Lens MountM12
Iris TypeFixed
ApertureF1.6
Depth of Field2.8 mm: 1.8 m to ∞; 4 mm: 3.1 m to ∞; 6 mm: 6.4 m to ∞
DORI2.8 mm: D 76 m, O 30 m, R 15 m, I 7 m; 4 mm: D 115 m, O 45 m, R 23 m, I 11 m; 6 mm: D 164 m, O 65 m, R 32 m, I 16 m
Supplement Light TypeIR, White Light
Supplement Light Range-2LI/-2LI2U: up to 60 m; -4LI/-4LI2U: up to 80 m
Smart Supplement LightYes
IR Wavelength850 nm
Main Stream50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), supported under certain settings
Video CompressionMain: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline, Main, High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Bit Rate ControlCBR, VBR
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Target CroppingYes
Audio Compression-2LI2U/-4LI2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-2LI2U/-4LI2U: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
Audio Sampling Rate-2LI2U/-4LI2U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering-2LI2U/-4LI2U: Yes
Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
SecurityPassword protection, complex password, HTTPS encryption, IP address filter, security audit log, basic/digest authentication, TLS 1.1/1.2/1.3, WSSE authentication
User/HostUp to 32 users; administrator, operator, user
ClientiVMS-4200, Hik-Connect, Hik-Central
Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); memory card encryption and health detection supported with high-end Hikvision card
Web BrowserIE 11 (plug-in required); plug-in free: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters SwitchYes
Day/Night SwitchDay, Night, Auto, Schedule
Image SettingsRotate mode
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask8 programmable polygon privacy masks
Ethernet Interface1 RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board StoragemicroSD/microSDHC/microSDXC up to 512 GB
Reset KeyYes
Built-in Microphone-2U: Arrayed dual-microphone
Basic EventMotion detection (human/vehicle), video tampering, exception
Smart EventFace detection
LinkageFTP/NAS/memory card upload, notify center, email, trigger recording/capture
Perimeter ProtectionLine crossing, intrusion (human/vehicle)
Power-2LI/-2LI2U: 12 VDC ±25%, 0.66 A, max. 8.0 W; PoE 802.3af Class 3, max. 9.5 W; -4LI/-4LI2U: 12 VDC ±25%, 0.87 A, max. 10.5 W; PoE 802.3af Class 3, max. 12 W
MaterialMetal
Dimension88.7 mm × 93.1 mm × 286.7 mm (3.5" × 3.7" × 11.3")
Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
WeightApprox. 1150 g (2.5 lb.)
With Package WeightApprox. 1640 g (3.6 lb.)
Storage Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
Language33 languages including English, German, French, Spanish, Russian, Chinese, Japanese, Korean
General FunctionHeartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
EMC ApprovalCE-EMC EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3; RCM; IC; KC
SafetyIEC/EN 62368-1; BIS IS 13252; LOA IEC/EN 60950-1
EnvironmentCE-RoHS, WEEE, REACH
ProtectionIP67
