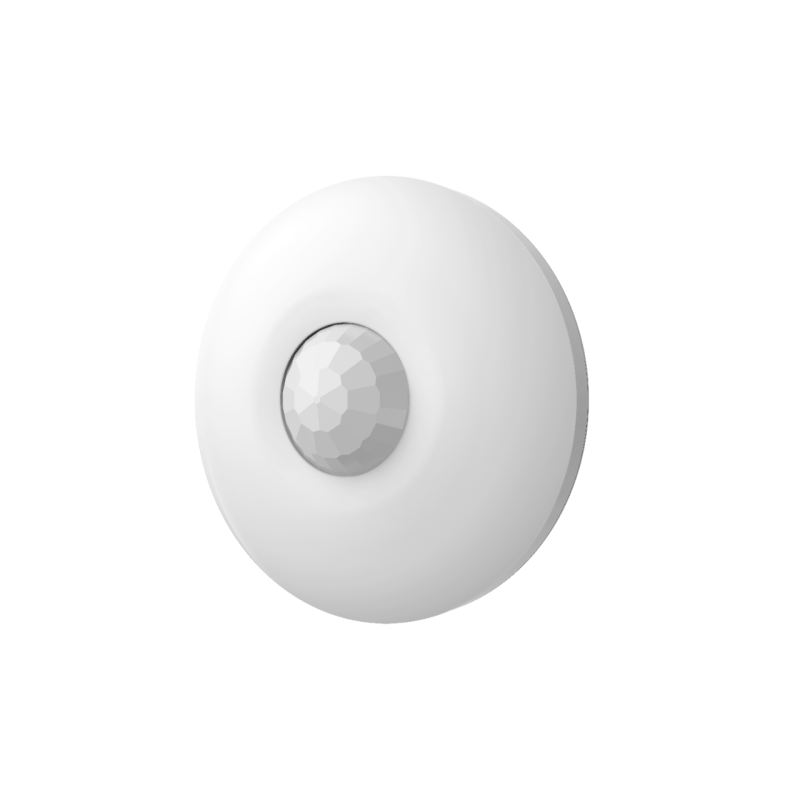

Laidinis PIR lubinis judesio jutiklis Hik-vision Ellipse DS-PDCL12-EG2
SKU:DSPDCL12EG2
On Stock
HIKVISION Ellipse DS-PDCL12-EG2 is a wired indoor ceiling PIR detector providing 360° coverage with up to 12 m range. A digital quad pyro sensor, automatic sensitivity, digital processing and temperature compensation help reduce false alarms. Wide 9–16 VDC input and on-board EoL resistor improve compatibility with many wired intrusion alarm panels (NC output).
€15.62
Tax included
Delivery within 1–3 business days
PIR motion detector HIKVISION Ellipse DS-PDCL12-EG2
HIKVISION Ellipse DS-PDCL12-EG2 is a wired indoor PIR detector designed for security alarm systems. The device is ceiling-mounted and provides full 360° coverage with a detection range up to 12 meters. Thanks to the digital quad pyro sensor and advanced digital signal processing, the detector offers highly accurate motion detection with strong resistance to false alarms.
The detector features automatic sensitivity adjustment, digital temperature compensation and creep zone protection to improve reliability in various environmental conditions. A built-in white light filter (6500 lux) increases resistance to light interference, while sealed optics help protect internal components from dust and environmental influence.
Technology and security features
DS-PDCL12-EG2 supports wide voltage input (9–16 VDC) and includes an integrated EoL resistor for easier integration into alarm systems. Digital processing technology improves detection accuracy while the front tamper protection increases system security against unauthorized interference.
Applications
- Offices and administrative buildings
- Residential houses and apartments
- Commercial premises
- Warehouses and technical rooms
- Intrusion alarm systems
Technical specifications
| Parameter | Value |
|---|---|
| Detection Method | Passive Infrared (PIR) |
| Detection Range | 12 m |
| Detection Angle | 360° |
| Detection Zones | 172 |
| Detectable Speed | 0.3–2 m/s |
| Sensitivity | Auto, Low |
| White Light Filter | 6500 lux |
| Digital Temperature Compensation | Supported |
| Creep Zone Protection | Supported |
| Digital Processing | Supported |
| Sealed Optics | Supported |
| Tamper Protection | Front |
| Alarm Output | Normally Closed |
| LED Indicator | Blue (Alarm) |
| Power Supply | 9–16 VDC |
| Typical Voltage | 12 VDC |
| Power Consumption | 13 mA max |
| Operating Temperature | -10 °C to 55 °C |
| Storage Temperature | -20 °C to 60 °C |
| Operating Humidity | 10–90% |
| Dimensions | Ø101.2 × 32.9 mm |
| Weight | 79 g |
| Mounting Height | 2.4–4 m |
| Mounting Method | Ceiling |
| Application | Indoor |
DSPDCL12EG2
HIKVISION Ellipse DS-PDCL12-EG2 is a wired indoor ceiling PIR detector providing 360° coverage with up to 12 m range. A digital quad pyro sensor, automatic sensitivity, digital processing and temperature compensation help reduce false alarms. Wide 9–16 VDC input and on-board EoL resistor improve compatibility with many wired intrusion alarm panels (NC output).
