Analog 4-wire intercom system Hikvision DS-KIS313-P

SKU:PSMDSKIS313P
Out-of-Stock

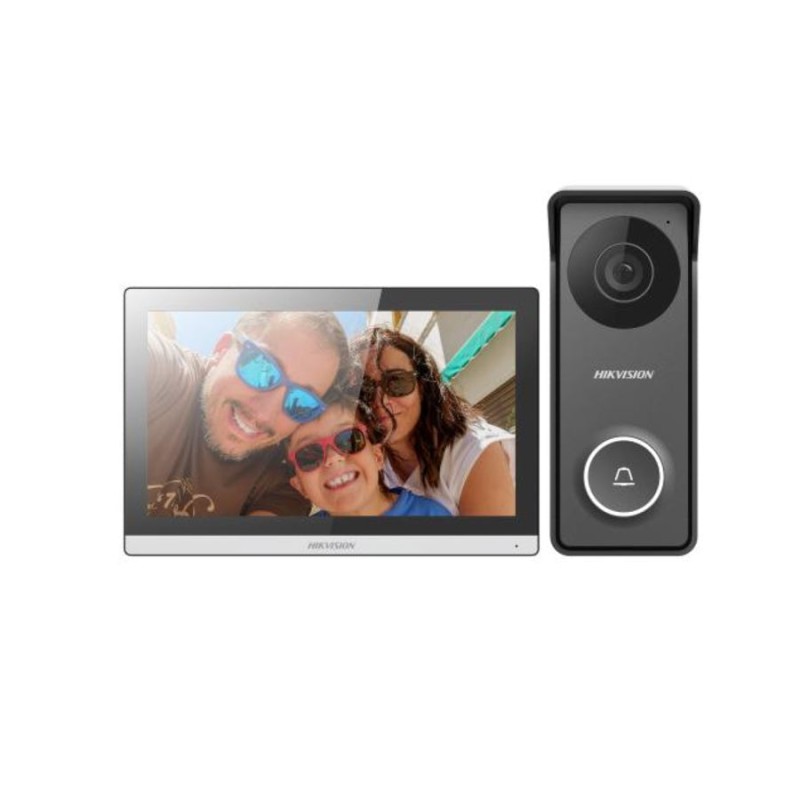

Analog 4-wire intercom system Hikvision DS-KIS313-P
€193.87
Tax included
Quantity
compare_arrows add to compare

  • Door station/Audio parameters
  • Audio input1 built-in omnidirectional microphone
  • Audio output1 built-in loudspeaker
  • Door station/Capacity parameters
  • Card capacity/
  • Linked indoor station capacity3
  • Sub door station capacity1
  • Door station/Device interfaces
  • Debugging port1
  • Four-Wire interface1
  • Lock control1 relay, max 30 V 1 A
  • Power supply input12 VDC
  • Door station/General
  • Application environmentOutdoor
  • Button1 physical button(s)
  • Dimension (W × H × D)55 mm × 145 mm × 24 mm (2.17" × 5.71" × 0.94")
  • Indicator/
  • InstallationSurface mounting
  • MaterialAluminum alloy and Plastic
  • Power consumption≤ 4 W
  • Power supply12 VDC
  • Protective levelIP65, IK08
  • WeightWithout package: 200 g (0.44 lb)
  • Working humidity10% to 90% (no-condensing)
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Door station/Video parameters
  • FOVHorizontal: 117°, Vertical: 70°, Diagonal: 141°
  • ResolutionStream resolution:1280 * 720@60fps
  • Supplement lightIR light, up to 3 m
  • Indoor station/Audio parameters
  • Audio compression bitrate64 Kps
  • Audio compression standardG.711U, G.711A
  • Audio input1 built-in omnidirectional microphone
  • Audio output1 built-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Indoor station/Capacity parameters
  • Linked analog camera1
  • Linked doorphone capacity2
  • Linked indoor extensions capacity2
  • Linked network camera capacity/
  • Indoor station/Device interfaces
  • Alarm input2
  • Alarm output/
  • Debugging port2
  • Four-Wire interface4
  • Network interface/
  • Power supply input12 VDC
  • RS-485/
  • Relay/
  • TF cardSupport TF card, up to 128 G
  • Indoor station/Display parameters
  • Contrast700 (Typ)
  • Luminance250 cd/m² （Typ）
  • Operatiing methodCapacitive touch screen
  • Resolution1024 × 600
  • Screen size7-inch
  • TypeColorful TFT
  • Viewing AngleHorizontal 160°, vertical 130°
  • Indoor station/General
  • Application environmentIndoor
  • Button0 physical button
  • Dimension (W × H × D)175 mm × 113.5 mm × 18.1 mm (6.89" × 4.47" × 0.71")
  • InstallationSurface mounting
  • LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
  • Power consumption≤ 5 W
  • Power supply12 VDC
  • WeightWithout package: 260 g (0.573 lb)
  • Working humidity10% to 90% (no-condensing)
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Indoor station/Network parameters
  • Wi-FiWi-Fi 802.11 b/g/n
  • Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • ProcessorEmbedded high performance processor
  • RAM128 MB
  • ROM32 MB
PSMDSKIS313P

Data sheet
