- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°
6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV: 72°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Smart IR
- Frame Rate5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement DWDR, BLC, HLC, Global
- Noise Reduction2D DNR
- White Balance Auto/Manual
- AGCYes
- Interface
- Video Output1 HD analog output

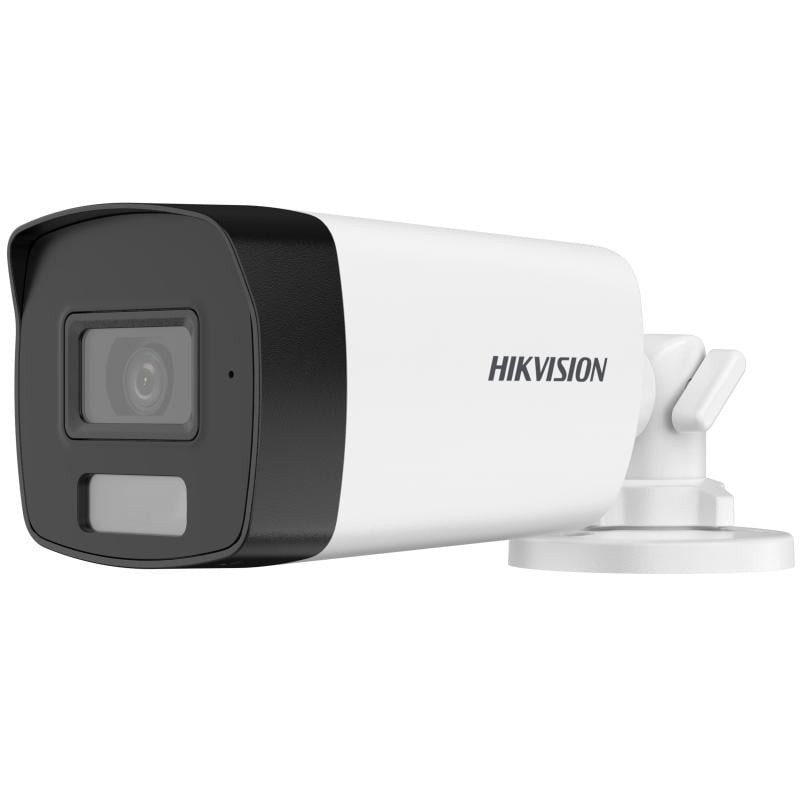

KDNDS2CE17K0TLFSF28
