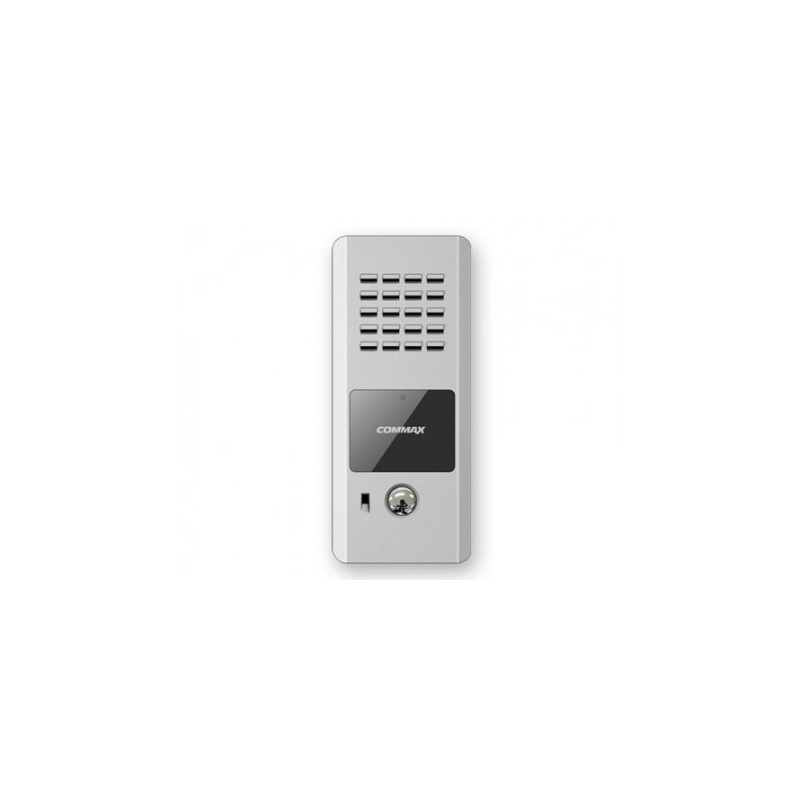

COMMAX DR-2PN is a surface-mount single-user door entry call panel featuring a built-in microphone, speaker, and call button. Designed for analog audio systems and compatible with COMMAX DP series handsets. The robust aluminum housing is suitable for outdoor use.
The DR-2PN is a reliable single-user panel for analog audio door phone systems. It provides clear two-way communication via a built-in microphone and speaker, while the aluminum housing offers durability in everyday use. Surface-mount installation enables quick setup without a recess box.
Mount directly on the wall surface. For outdoor installations, consider a rain shield or sheltered location. Connect to COMMAX indoor handsets using a 2-wire interface; power is supplied via the indoor unit, so no additional PSU is required.
| Parameter | Value |
|---|---|
| Model | DR-2PN |
| Brand | COMMAX |
| System type | Analog audio door phone (2-wire) |
| Users | 1 |
| Mounting | Surface-mount |
| Housing | Aluminum |
| Call button | 1 (no nameplate) |
| Audio | Built-in microphone and speaker |
| Connection | 2 wires to COMMAX indoor handset |
| Power supply | Provided via indoor unit (DP series) |
| Dimensions | 97 (W) × 150 (H) × 36 (D) mm |
| Compatibility | DP-2S, DP-SS, DP-LA01 and other COMMAX analog handsets |
