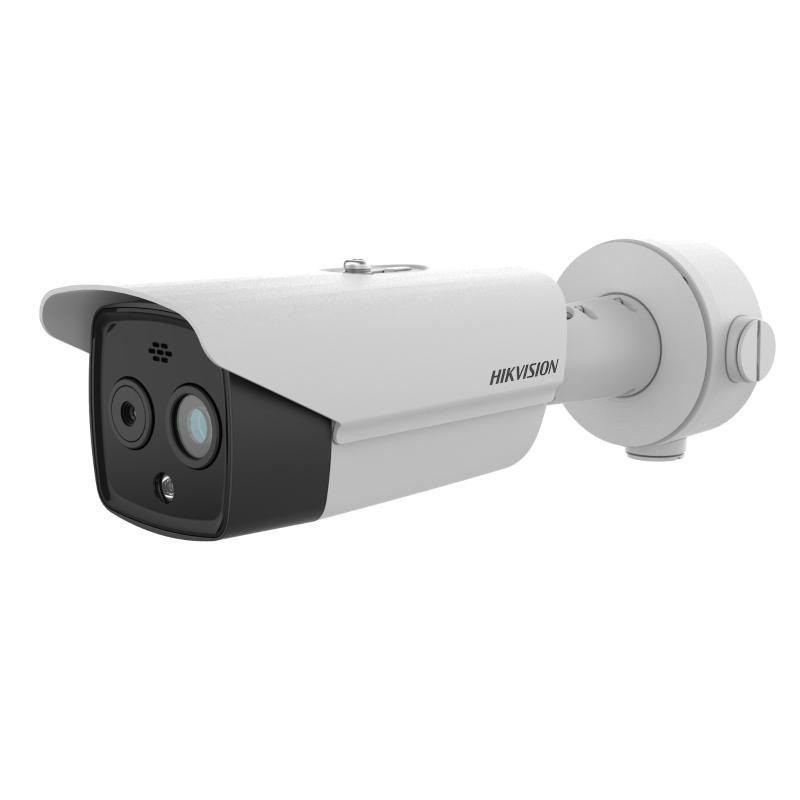

Hikvision HeatPro serijos termovizorinis bullet DS-2TD2628T-3/QA

Prekės kodas:KIPDS2TD2628T3QA

Prieinamumas: Yra sandėlyje

256 × 192 raiška, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
Vaizdo turinio analizė: transporto priemonių ir žmonių klasifikavimas
Temperatūros išimties aliarmas gaisro prevencijai: nuo −20 °C iki 550 °C (± 2 °C, ± 2 %)
Palaikomas dūmų aptikimo algoritmas
Palaikomas rūkymo aptikimo algoritmas
Palaikomi saulės atspindžių filtro ir krautuvo aliarmo filtro algoritmai
Vaizdo apdorojimo technologijos: linijinis, histograminis, savaime prisitaikantis terminis AGC režimas, DDE, 3D DNR
Aukštos kokybės detektorius su 10 metų garantija

788,71 €

Su PVM Pristatysime per 1-3 d.d.

Approval
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)FCC (ANSI C63.4;FCC Part15 sub B)
EnvironmentCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
ProtectionIP67: IEC 60529-2013IK10: IEC 62262-2002
SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017;UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)

Audible and Visual Alarm
Audio alarmYes, for three types of audible alarm (VCA and Temperature Exception)3 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
Visual AlarmYes. White light alarm with adjustable flashing frequencies
White Light RangeUp to 30 m

General
Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 W24VDC ± 25%: 0.22A to 0.75 A, max. 18WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
Power Supply24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
Protection LevelIP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
Weight1550 g (3.41 lb)
Working Temperature/Humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Target ColorationYes. Supported in white hot and black hot mode.

Interface
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Alarm Input2, alarm input (0-5 VDC)
Alarm Output2, alarm output (alarm response actions configurable)
Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Audio Input1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)

Network
APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
Client iVMS-4200, Hik-Connect
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

Optical Module
ApertureF 1.6
Day & Night ModeIR Cut Filter with Auto Switch
Field of View84.0° ×43.1° (H × V)
Focal Length 4.3 mm
Image Sensor1/2.7" Progressive Scan CMOS
Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Resolution 2688 × 1520
Shutter Speed1 s to 1/100,000 s
WDR120 dB
White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light

Smart Function
General FunctionFire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Temperature Accuracy Max (±2°C, ±2 %)
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 550°C (-4°F to 1022°F);
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Video and Audio
Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Main Stream Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
