Nauja

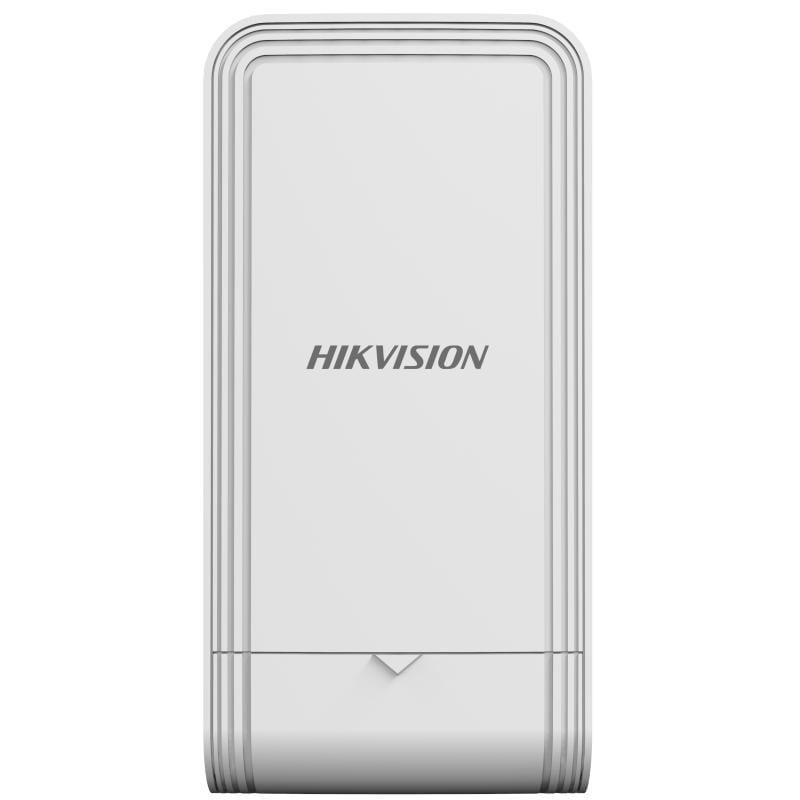

Belaidis LAN perdavimas Hikvision DS-3WF03C-5AC/O

Prekės kodas:CPEDS3WF03C5ACO

Prieinamumas: Yra sandėlyje

Belaidis A/N greitis iki 867Mbps
Antenos kampas 35°
Reguliuojama perdavimo galia nuo 0 iki 27dBm
Integruota 2×2 MIMO 12dBi antena
HPP palaikymas
Palaiko atvirą dažnį nuo 5150 iki 5820 MHz
Didelio nuotolio belaidis perdavimas iki 15 km
12-24 VDC/1A pasyvus PoE
Dėžutėje: 1 x DS-3WF03C-5AC/O, 1 x maitinimo šaltinis(12 VDC, 1 A), 2 x Tvirtinimo dirželis, 1 x Montavimo instrukcija

55,89 €

Su PVM Pristatysime per 1-3 d.d.

Pagrindinis
Product Dimensions (W × H × D) 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
Pakuotės Matmenys (P × A × G)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
Svoris be įpakavimo0.307 kg (0.677 lb)
Svoris su įpakavimo0.807 kg (1.779 lb)
PakuotėjeWireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,Quick Start Guide ×1
Packing MethodSingle unit packing
Darbinė temperatūra-30 °C to 70 °C (-22 °F to 158 °F)
Atsparumas drėgmei5% to 95% (no condensation)
Sandėliavimo sąlygos temperatūra-40 °C to 85 °C (-40 °F to 185 °F)
Sandėliavimo sąlygos drėgmė5% to 95% (no condensation)
Installation ModePole Mounting
Ingress ProtectionIP55
Energijos sunaudojimas3 W for typical (1-ch 2MP IPC), Max. 7.5 W

Belaidžio ryšio parametrai
Max. Transmission Rate of Air Interface≤ 867 Mbps
Belaidis standartasIEEE 802.11/a/n/ac
Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
Antenos stiprinimas12 dBi
Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
Receiving Sensitivity-60±2 dBm@AC80-MCS9,-86±2dBm@AC80-MCS0
Throughput RatePoint to point: Support up to 4-ch IPC (2MP) in Max. 15 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 5 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 5 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection

Programinės įrangos funkcijos
Application FunctionTDMA,DFS,TPC,IFM,IPM
Kanalo plotis20/40/80 MHz
Channel SelectionAuto/manual selection
ProtokolaiNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
Security ModeWPA2-PSK
Security MechanismWireless network name hidden
Management MethodWeb,HCP
UpgradeWeb,iVMS-4200
System LogSyslog,Control center information

Patvirtinimai
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
SaugumasUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Cheminis tyrimasCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
