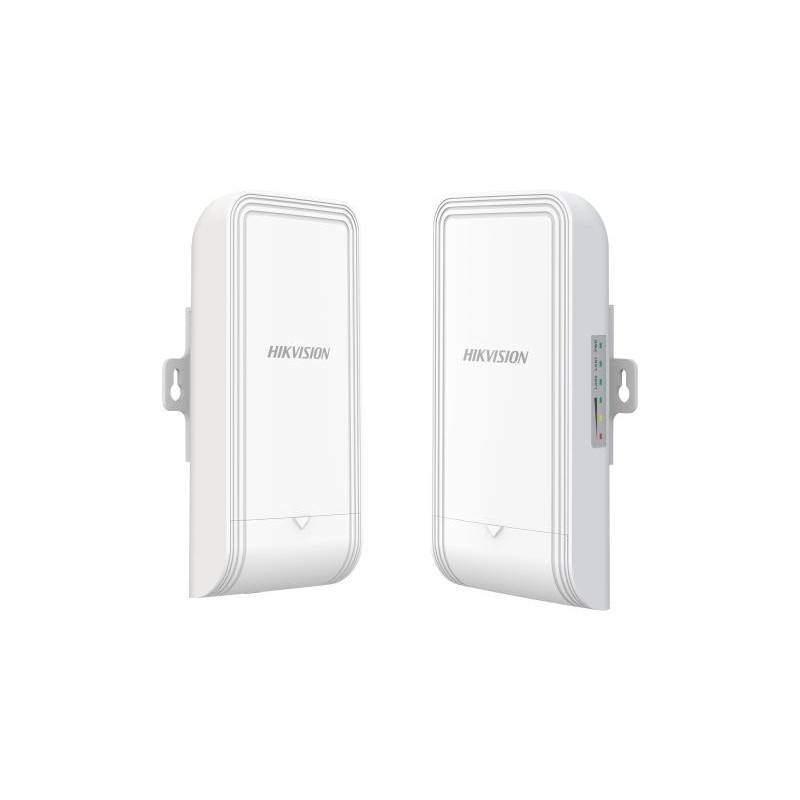

Belaidis LAN perdavimo komplektas Hikvision DS-3WF02-5AC/D

Prekės kodas:CPEDS3WF025ACD

Prieinamumas: Yra sandėlyje

72,75 €

Su PVM Pristatysime per 1-3 d.d.

Patvirtinimai
Cheminių komponentų sertifikavimasCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
SaugumasCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)

Bendrosios savybės
Bendras svoris1.1 kg (2.43 lb)
Apsauga nuo dulkių ir drėgmėsIP55
Installation ModePole Mounting
Grynasis svoris 0.26 kg (0.57 lb) per device
Pakuotės Matmenys (P × A × G)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
PakuotėjeWireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
Packing MethodPacking in pairs
Energijos suvartojimas2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W
Produkto matmenys (P × A × G) 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
Laikymo drėgmė5% to 95% (no condensation)
Sandėliavimo temperatūra-40 °C to 80 °C (-40 °F to 176 °F)
Darbinė drėgmė5% to 95% (no condensation)
Darbinė temperatūra-30 °C to 65 °C (-22 °F to 149 °F)

Hardware Parameter
LED indikatoriusPower indicator,LAN indicator,Signal intensity indicator
Tinklo sąsaja2 × 10/100 Mbps RJ45 ports
Maitinimo šaltinis48V PoE/12~24V DC;Check the physical interface image below for more details.
PerkrovimasHardware resetting button

PoE
PoE Distance100 m
PoE prievadasAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
PoE maitinimo biudžetas10 W

Programinės įrangos funkcijos
Application FunctionIFM,IPM,DFS,TPC
Channel SelectionAuto/manual selection
Kanalo plotis20/40/80 MHz
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Reboot device2. Restore device3. Display the topology information4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate.5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power6. Bridge alignment7. Spectrum scanning8. PoE output management
Management MethodHCP,Web,iVMS-4200,HPP
ProtokolaiNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Security MechanismWireless network name hidden
Security ModeWPA2-PSK
Sistemos žurnalasSyslog,Control center information
UpgradeWeb,iVMS-4200,HCP,HPP

Belaidžio ryšio parametrai
Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
Antenos stiprinimas12 dBi
Max. Transmission Rate of Air Interface≤ 867 Mbps
Receiving Sensitivity-84 ±2dBm@AC80-MCS0
Throughput RatePTP: ,90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 4): ,80 Mbps/1 KM(AC80)
Perdavimo galia22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
Belaidžio ryšio standartasIEEE 802.11/a/n/ac
Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
