- Bendrieji duomenys

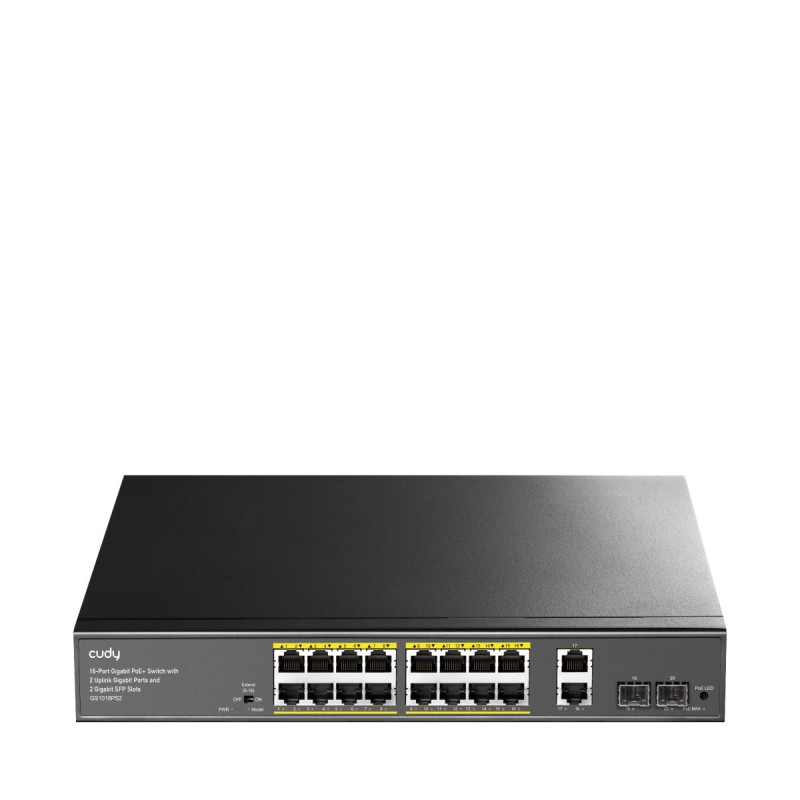

- ModelisGS1018PS2
- Ethernet prievadai16× Gigabit PoE ports, 2× Uplink Gigabit ports, 2× Gigabit SFP slots
- PoE standartaiIEEE802.3af (15.4W), IEEE802.3at (30W)
- PoE išėjimo įtampaDC 44–57V
- PoE maitinimo šerdisPins 1/2 (+), 3/6 (–)
- Įrenginio maksimali PoE galia180W
- Max Non-PoE Power Consumption10W
- Power Supply InputAC 100–240V, 50/60Hz; Output: 52V / 3.84A
- Lustų rinkinysEN8850DH, RTL8238B
- Perjungimo talpa40 Gbps
- Paketų perdavimo sparta29.76 Mpps
- Paketų buferis3 Mbit
- MAC adresų lentelė8K
- Transfer ModeStore-and-forward
- Palaikomi protokolaiIEEE802.3, 802.3u, 802.3ab, 802.3x, 802.3z
- Extend ModePorts 9–16 force 10 Mbps up to 250 m, watchdog enabled for ports 1–16
- PoE PriorityPrioritization enabled on ports 1–16 by default
- WatchdogEnabled in Extend mode (auto-reboots unresponsive clients)
- LED indikatoriaiPWR, Link/ACT (1–20), PoE Power Status (1–16), DIP switch mode indicator
- LED PoE Status IndicatorGreen: normal; Flashing: 90–95%; Solid: 95–100% usage
- Cabling Support10BASE-T: Cat 3/4/5 UTP/STP (≤100m); 100/1000BASE-TX: Cat 5 or higher UTP/STP (≤100m)
- Optical Media SupportMultimode: 50/125, 62.5/125, 100/140 µm; Single-mode: 8/125, 8.7/125, 9/125, 10/125 µm
- Apsauga nuo viršįtampioMax 4KV (common mode)
- ESD apsaugaAir: 8KV, Contact: 6KV
- Darbinė temperatūra-10°C ~ 50°C
- Laikymo temperatūra-40°C ~ 70°C
- Darbinė drėgmė10% ~ 90%, non-condensing
- Laikymo drėgmė5% ~ 95%, non-condensing
- Matmenys320×207×44 mm
SWITCHCUDYGS1018PS2
