Nauja Išparduota

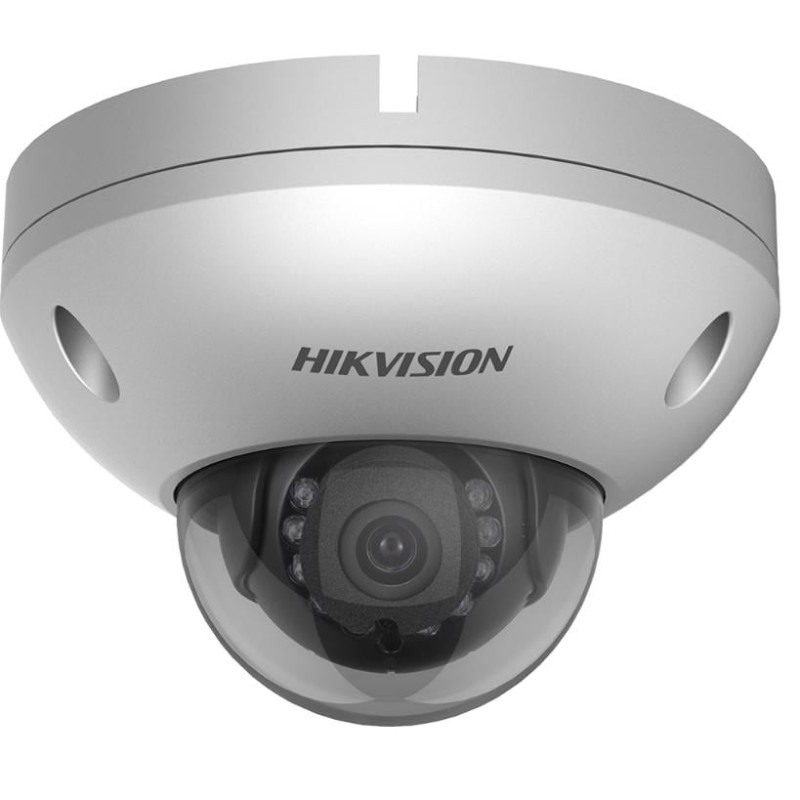

Hikvision DS-2XC6142FWD-IS(C) (atspari sprogimams)

Prekės kodas:KIPDS2XC6142FWDIS28C

Prieinamumas: Išparduota

Aš sutinku su sąlygomis ir privatumo politika Perskaitykite naudojimo sąlygas.

784,83 €

Su PVM

Kamera
Sensorius1/3" Progressive Scan CMOS
Maks. rezoliucija2688 × 1520
Min. apšvietimas
Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Užrakto greitis1/3 s to 1/100,000 s
Day & NightIR cut filter
Kampo keitimasPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lęšis
Lęšio tipasFixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98.5°, vertical FOV 52.8°, diagonal FOV 116.2°
4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 92.8°
6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°
Lęšio montavimasM12
DiafragamaF1.6

DORI
DORI
2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m
4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m
6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Trečias srautas
50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for each stream

Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface, ISAPI, ISUP 5.0
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Vidinė atmintisNAS (NFS, SMB/CIFS), ANR
KlientasiVMS-4200, Hik-Connect
Naršyklė
Plug-in required live view: IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Diena/Naktis režimasDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
Nuotraukų pagražinimasBLC, HLC, 3D DNR, defog

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Signalizacija1 alarm input, 1 alarm output

Funkcijos
Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Išmaniosios funkcijos
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection, unattended baggage detection, object removal detection

Pagrindinis
Sistemos parametrai
12 VDC, 0.4 A, max. 5 W, two-core terminal block
PoE (802.3af, Class 3, 36 V to 57 V), 0.1 A
Medžiaga316L and anti-corrosion coating
DydisØ113 mm × 77.3 mm (4.45" × 3.04")
Pakuotės dydis257 mm × 167 mm × 145 mm (10.12" × 6.57" × 5.71")
SvorisApprox. 1500 g (3.3 lb.)
Svoris su įpakavimuApprox. 1900 g (4.2 lb.)
Darbo sąlygos-30°C to +60 °C (-22 °F to +140 °F). Humidity less than 95% (non-condensing)
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosHeartbeat, password protection, privacy mask, watermark, IP address filter, mirror

Patvirtinimai
EMC
FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015
IC: IC-VoC (ICES-003 Issue 7:2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
Saugumas
UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014
CB: IEC 62368-1:2014
BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015
LOA: SANS IEC60950-1
AplinkosaugaCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
ApsaugaIP67 (IEC 60529-2013)
Apsauga nuo korozijos
WF2, NEMA-4X
C5-M: 720H neutral salt spray, 480H water condensation;
Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;
Interior environments: buildings or areas with almost permanent condensation and with high pollution.
