Nauja

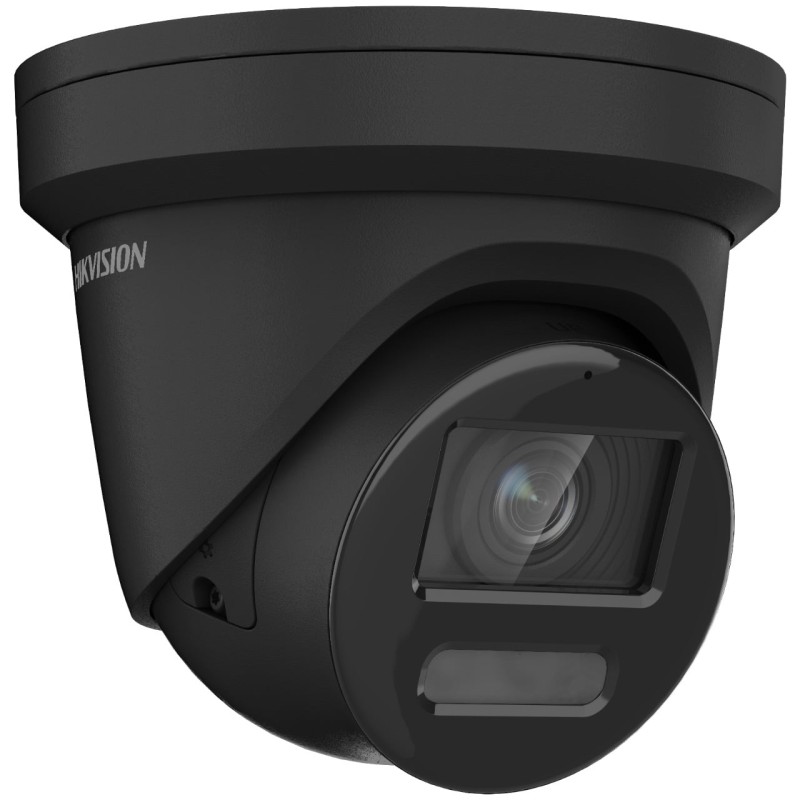

Hikvision dome DS-2CD2387G2-LSU/SL(C) F2.8 (juoda, 8 MP, 30 m. LED, ColorVu)

Prekės kodas:KIP2CD2387G2LSUSLCB

Prieinamumas: Yra sandėlyje

312,97 €

Su PVM Pristatysime per 1-3 d.d.

Lęšis
Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
FOV
2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
Lęšio montavimasM mount
Rainelės tipasFixed
DiafragamaF1.0
Ryškumo gylis
2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞

DORI
DORI
2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Vaizdas
Pagrindinis srautas
50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
Vaizdo suspaudimas
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Vaizdo bitų greitis32 Kbps to 16 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR/VBR
SVCH.264 and H.265 encoding
ROI1 fixed region for main stream and sub-stream

Garsas
Pašalinių garsų šalinimas-U: Yes
Garso atrankos dažnis-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Garso suspaudimas-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Garso bitų greitis-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Internetas
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
KlientasiVMS-4200, Hik-Connect, Hik-Central
Naršyklė
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
WDR130 dB
SNR≥ 52 dB
Privatumo kaukė8 programmable polygon privacy masks, mask color or mosaic configurable
Diena/Naktis režimasDay, Night, Auto, Schedule
Nuotraukų pagražinimasBLC, HLC, 3D DNR
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Įmontuotas mikrofonasYes
Įmontuotas garsiakalbis1.5 W, 10 cm: 95 dB
Garsas
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium
1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija1 input, 1 output (max. 24 VDC, 1 A)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
SąsajaUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A
MedžiagaCover: metal, main body: metal
DydisØ138.3 mm × 120.1 mm (Ø5.4" × 4.7")
Pakuotės dydis170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Approx. 900 g (2 lb.)
Svoris su įpakavimuApprox. 1190 g (2.6 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter

Patvirtinimai
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
Saugumas
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
Aplinkosauga
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
ApsaugaIP67: IEC 60529-2013
