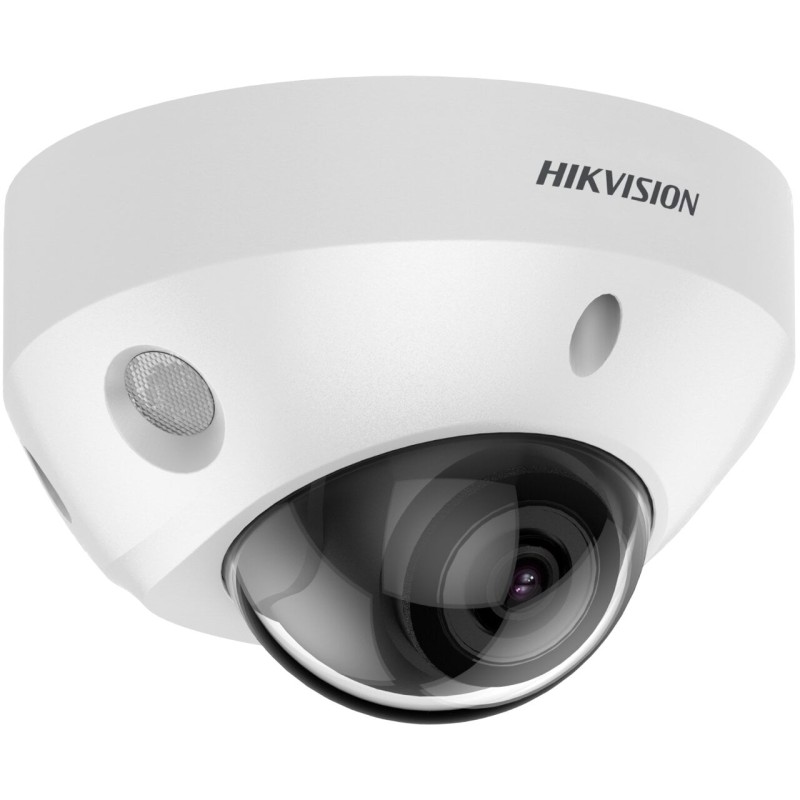

Hikvision dome DS-2CD2583G2-IS F2.8 (balta, 8 MP, 30 m. IR, AcuSense)

Prekės kodas:KIPDS2CD2583G2ISF2.8

Prieinamumas: Yra sandėlyje

188,67 €

Su PVM Pristatysime per 1-3 d.d.

Lęšis
Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
FOV
2.8 mm, horizontal FOV 106.4°, vertical FOV 58.4°, diagonal FOV 124.8°
4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°
Lęšio montavimasM12
Rainelės tipasFixed
DiafragamaF1.6
Ryškumo gylis
2.8 mm: 1.4 m to ∞
4 mm: 2.1 m to ∞

Vaizdas
Pagrindinis srautas
50 Hz:
20 fps (3840 × 2160)
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Vaizdo suspaudimas
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Vaizdo bitų greitis32 Kbps to 16 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR/VBR
SVCH.264 and H.265 encoding
ROI1 fixed region for main stream and sub-stream

Garsas
Garso suspaudimasG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimasYes

Tinklas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Jungtis
Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
KlientasiVMS-4200, Hik-Connect, Hik-Central
Naršyklė
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Diena/Naktis režimasDay, Night, Auto, Schedule
WDR120 dB
SNR≥ 52 dB
Nuotraukų pagražinimasBLC, HLC, 3D DNR

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD card, up to 256 GB
Įmontuotas mikrofonasYes
Garsas
-IS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija
-IS:
1 input, 1 output (max. 12 VDC, 20 mA)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funckcijosMotion detection (human and vehicle targets classfication), video tampering alarm, exception
Išmaniosios funkcijosLine crossing detection, intrusion detection
SąsajaUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

Pagrindinis
Maitinimas
12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
DydisØ113.6 mm × 72.6 mm (Ø 4.5" × 2.9")
Pakuotės dydis134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Approx. 400 g (0.9 lb.)
Svoris su įpakavimuApprox. 635 g (1.4 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Pagrindinės funkcijosAnti-flicker, heartbeat, password reset via e-mail, pixel counter

Patvirtinimai
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
Saugumas
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
Aplinkosauga
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Apsauga
IP67 (IEC 60529-2013)
IK10 (IEC 62262: 2002)
