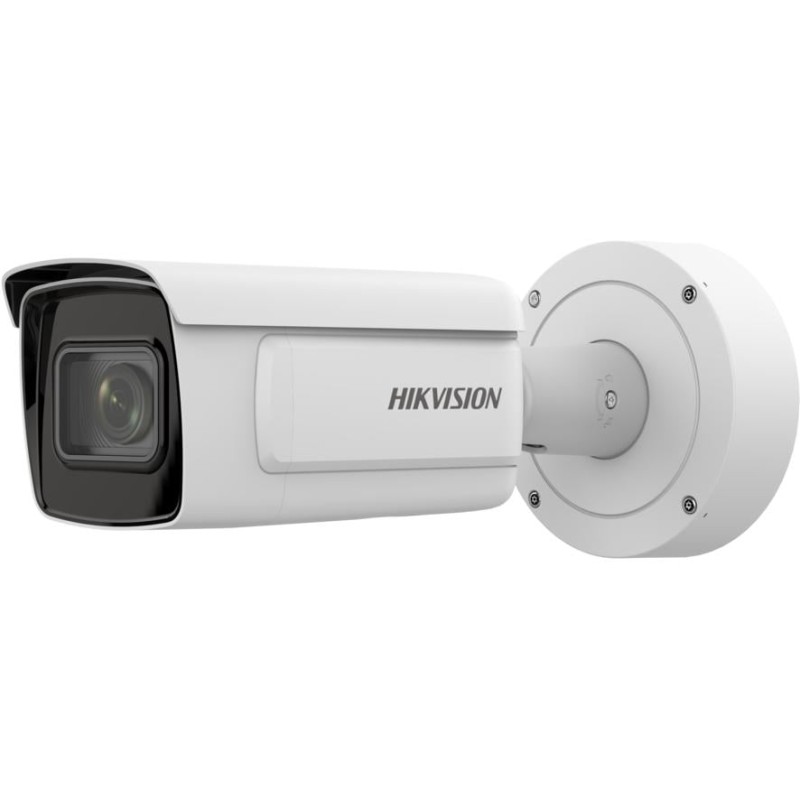

Kamera Sensorius 1/1.8" Progressive Scan CMOS Maks. rezoliucija 2560 × 1440 Min. apšvietimas Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Užrakto greitis 1 s to 1/100,000 s Diena & Naktis IR cut filter
Blue glass module to reduce ghost phenomenon
Lęšis FOV 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
Fokusavimas Auto, semi-auto, manual Rainelės tipas P-iris Diafragama 2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
DORI DORI Wide:
2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele:
2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Apšvietimas Papildomo apšviešimo tipas IR Papildomo apšvietimo diapazonas 2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
Išmanus papildomas apšvietimas Yes IR bangos ilgis 850 nm Vaizdas Pagrindinis srautas 50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720)
60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)
Antrinis srautas 50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Trečias srautas 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Ketvirtas srautas 50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Penktasis srautas 50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Vaizdo suspaudimas H.265+/H.265/H.264+/H.264/MJPEG Vaizdo bitų greitis 32 Kbps to 8 Mbps H.264 tipas Baseline Profile/Main Profile/High Profile H.265 tipas Baseline Profile/Main Profile/High Profile Bitų greičio kontrolė CBR/VBR SVC H.264 and H.265 encoding ROI 4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream Tikslinis apkarpymas Yes Garsas Garso tipas Mono sound Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3 Pašalinių garsų šalinimas Yes Garso bitų greitis 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3) Internetas Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS Tiesioginis vaizdo žiūrėjimas Up to 20 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP User/Host Up to 32 users
3 user levels: administrator, operator, and user
Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 Vidinė atmintis NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas iVMS-4200, Hik-Connect Naršyklė Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Not recommended: Safari 11+, Edge
Nuotrauka Nuotraukos parametrų keitiklis Yes Nuotraukos nustatymai Saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser Diena/Naktis režimas Day, Night, Auto, Schedule, Alarm Trigger WDR 140 dB Nuotraukų pagražinimas BLC, HLC, Defog, 3D DNR SNR ≥ 52 dB Privatumo kaukė 8 programmable polygon privacy masks, mask color or mosaic configurable Nuotraukos perdanga LOGO picture can be overlaid on video with 128 × 128 24bit bmp format Vaizdo stabilizavimas EIS Sąsaja Vaizdo išvestis 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) Interneto sąsaja 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Garsas With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector Signalizacija 2 input, 2 outputs (max. 24 VDC, 1 A) RS-485 With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Perkrovimo mygtukas Yes Galia With -Y: 12 VDC, max. 100 mA Funkcijos Pagrindinės funckcijos Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection Išmaniosios funkcijos Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection Sąsaja Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture Išmaniosios funkcijos Kelių taikinių sekimas Supports simultaneous detection and capture of human body, face and vehicle
Gets 7 face features, 13 human body features and 2 vehicle features
Veido atpažinimas 1. Detects up to 60 faces simultaneously
2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°
3. Uploads face with background and closed-up face pictures
Veidų sulyginimas Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.
Supports face library encryption
Perimetro apsauga Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Pagrindinis Sistemos parametrai 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295A, max. 16.8 W
Dydis Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
Pakuotės dydis 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″) Approx. 1950 g (4.2 lb.) Svoris su įpakavimu Approx. 3070 g (6.7 lb.) Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Darbo sąlygos -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Pagrindinės funkcijos Heartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams Patvirtinimai EMC FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Saugumas UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
Aplinkosauga CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Apsauga IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) Apsauga nuo korozijos With -Y: NEMA 4X(NEMA 250-2018) Automatika EN50121-4 Kita PVC FREE
Kodas
KIPIDS2CD7A46G0IZHSC
