- Bendra
- Produkto pavadinimasDH-IPC-HFW3849T1-AS-PV-PRO

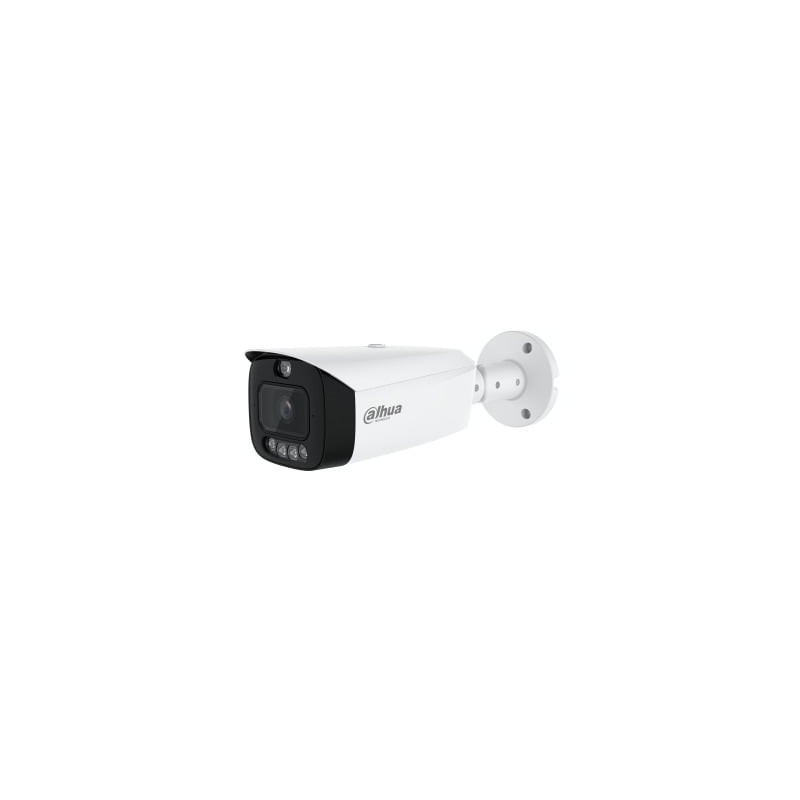

- Aprašymas8MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera
- Image sensor1/1.8" CMOS, low-light, high-definition
- Max resolution3840 × 2160 (8MP) @ 25/30 fps
- Lens options2.8 mm or 3.6 mm fixed focal length, F1.0 aperture
- Field of view (2.8 mm)H: 109°, V: 59°, D: 131°
- Field of view (3.6 mm)H: 93°, V: 50°, D: 111°
- Apšvietimo atstumasUp to 50 m IR and 50 m warm light
- Low light sensitivity0.0008 Lux (Color), 0.0004 Lux (B/W), 0 Lux with illuminator
- Apšvietimo valdymasAuto / Manual, 4 multi-core IR + warm LEDs
- Image functionsWDR (120 dB), BLC, HLC, 3D NR, Defog, SSA, LDC, mirror, image rotation, privacy masking (8 areas)
- Vaizdo glaudinimasH.265, H.264, MJPEG (sub-stream), Smart H.265+/H.264+, AI Coding
- Stream capability3 streams
- Bitrate controlVBR, CBR, ABR (3 kbps to 16384 kbps)
- GarsasBuilt-in dual microphones, 1 input (RCA), 1 output (RCA), G.711a/u, PCM, G.726, G.723
- Alarms1 input (wet contact), 1 output (12 VDC, 300 mA)
- Smart featuresIntrusion and tripwire (vehicle/human classification), SMD 4.0, Smart Dual Light, AcuPick, AI SSA, Smart Search
- Alarm eventsMotion, intrusion, tamper, audio detection, IP conflict, illegal access, SD issues, voltage issues, etc.
- Network portRJ-45 (10/100 Base-T)
- ProtokolaiIPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, FTP, SMTP, P2P, ONVIF (Profiles S/G/T), CGI
- AtmintisMicroSD (up to 512 GB), FTP/SFTP, NAS
- Management softwareSmart PSS Lite, DSS, DMSS, DoLynk Care
- Mobile platformsiOS, Android
- CybersecurityVideo/config encryption, HTTPS, 802.1x, trusted boot/execution, X.509 certs, IP/MAC filtering
- Maitinimo šaltinis12 VDC / PoE+ (802.3at)
- Energijos sąnaudosBasic: 4.3 W (12 VDC) / 6.2 W (PoE); Max: 11.8 W (12 VDC) / 15.1 W (PoE)
- Darbinė temperatūra–40 °C to +60 °C (–40 °F to +140 °F)
- Drėgmė≤95% RH (non-condensing)
- Ingress protectionIP67 rated
- Matmenys288.4 × 94.4 × 84.7 mm (11.35" × 3.72" × 3.33")
- Neto svoris1.0 kg (2.20 lb)
- Bendras svoris1.3 kg (2.87 lb)
- Korpuso medžiagaMetal + plastic
- SertifikataiCE-LVD: EN 62368-1, CE-EMC: Directive 2014/30/EU
- Pasirenkami priedaiPFA135, PFA130-E, PFA152-E, PFM320D-EN, PFM900-E, TF-P100
