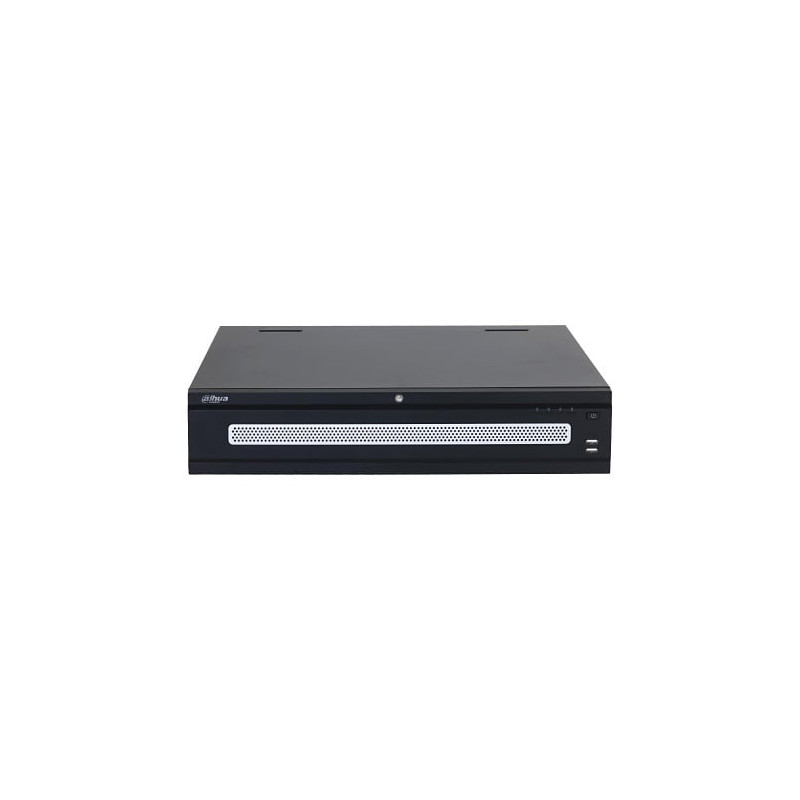

Tinklinis įrašymo įrenginys Dahua NVR NVR608RH-64-XI

Prekės kodas:DAHNVR608RH64XI

Prieinamumas: Išparduota

Tipas: tinklinis įrašymo įrenginys (NVR)
Prekės ženklas: Dahua
Modelis: NVR608RH-64-XI
Technologija: WizMind, AcuPick
Kanalai: 64
Skiriamoji geba: iki 32 MP/kan.
Atmintis: 8×SATA (iki 20 TB kiekvienas)
AI pralaidumas: 640 Mbps IN, 512 Mbps OUT
Audio sąsaja: 1 in/out (RCA)
Signalizacijos sąsajos: 16 in, 8 out
Sąsajos: RJ45 2500 Mbps, 4×USB, 4×HDMI, 2×VGA

Aš sutinku su sąlygomis ir privatumo politika Perskaitykite naudojimo sąlygas.

3 111,62 €

Su PVM

Aprašymas
Prekė detaliau

Bendras
ModelisDahua DHI-NVR608RH-64-XI
Tipas64 Channels 2U 8HDDs WizMind Network Video Recorder
Pagrindinis procesoriusIndustrial-grade processor
Operacinė sistemaEmbedded Linux
Operacinė sąsajaWeb, Local GUI
AI įrašymo įrenginiuFace detection, face recognition, video metadata (human, motor vehicles, non-motor vehicles), SMD Plus
AI pagal kamerąFace detection, face recognition, video metadata, SMD Plus, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, object monitoring
Perimeter Protection (Recorder)24 channels, 10 IVS rules per channel
Perimeter Protection (Camera)64 channels
Face Detection AttributesGender, age group, glasses, expressions, face mask, beard
Face Detection (Recorder)4 channels (up to 12 face images/s per channel)
Face Detection (Camera)64 channels
Face Recognition DatabaseUp to 40 face databases, 300,000 images total, 48 GB capacity, supports name, gender, birthday, address, credential info, countries & regions
Face Recognition (Recorder)20 FD (by camera) + FR (by recorder), 20 face images/s; or 4 FD + FR (by recorder), 12 face images/s
Face Recognition (Camera)64 channels
SMD Plus įrašymo įrenginiu32 channels: Filters humans/motor vehicles, reduces false alarms from leaves, rain, light
SMD Plus by Camera64 channels
Video Metadata by Recorder8 channels
Video Metadata by Camera32 channels
Human AttributesTop color/type, hat, bag, age, gender, umbrella
Motor Vehicle AttributesPlate, color, model, logo, ornament, calling
Non-Motor Vehicle AttributesModel, color, passenger count, helmet
ANPR by Camera32 channels
License Plate Database20,000 blocklist/allowlist entries
Access Channels64 channels
Network Bandwidth (AI off)1024 Mbps incoming/recording, 800 Mbps outgoing
Network Bandwidth (AI on)512 Mbps incoming/recording, 400 Mbps outgoing
Supported Resolutions32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p, 720p, D1
Iškodavimo pajėgumas2×32 MP@30fps, 2×24 MP@30fps, 4×16 MP@30fps, 8×8 MP@30fps, 16×4 MP@30fps, 32×1080p@30fps, 72×720p@30fps, 160×D1@30fps
Vaizdo išvestis2 VGA, 4 HDMI; max HDMI3: 8K, HDMI1/2: 4K, HDMI4/VGA: 1080p
Daugiakanalis ekranasMain: 1/4/8/9/16/25/36/64; Sub: 1/4/8/9/16/25/36
Trečiųjų šalių kamerų prieigaONVIF, Sony, Axis, Arecont, Pelco, Canon, Samsung
Vaizdo glaudinimasSmart H.265+, H.265, Smart H.264+, H.264, MPEG4, MJPEG
Garso glaudinimasG.711a, G.711u, PCM, G726
Tinklo protokolaiHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, ISCSI
Prieiga per mobiliuosius įrenginiusiOS, Android
SuderinamumasONVIF (Profiles S/T/G), CGI, SDK
Web Browser CompatibilityChrome, IE 9+, Firefox
Tinklo režimasMulti-address, load balancing, fault tolerance, port binding
Playback ChannelsUp to 16 channels
Recording ModesManual, alarm, motion detection, schedule
Backup MethodsUSB, portable HDD, eSATA, network, burner
Playback ControlsPlay, pause, stop, fast/reverse, frame-by-frame, full screen, cut/file backup, zoom, audio on/off
Storage ConfigurationDisk groups, RAID 0/1/5/6/10, hot-swapping
Signalizacijos įėjimas / išėjimas16 input channels, 8 output channels
General AlarmsMotion detection, tampering, video loss, scene change, PIR, IPC external alarm
Anomaly AlarmsCamera offline, storage error, disk full, IP/MAC conflict, login lock, fan abnormality
Smart AlarmsFace detection/recognition, intrusion/tripwire, SMD Plus, ANPR, people counting, stereo analysis, heat map
Signalizacijos sąsajaRecord, snapshot, IPC alarm out, buzzer, log, preset, email
Garso įvestis1 RCA
Garso išvestis2 RCA
HDD Interface8 SATA ports, up to 16 TB per drive (depends on environment)
eSATA1 port
RS-232 / RS-4851 RS-232, 1× RS-485 A/B
USB prievadai4 (2× USB 2.0 front, 2× USB 3.0 rear)
HDMI / VGA Ports4 HDMI, 2 VGA
Tinklo prievadai2 (10/100/1000/2500 Mbps, RJ-45)
Maitinimo šaltinis100–240 VAC, 50/60 Hz
Atsarginis maitinimasYes
Energijos suvartojimas<18 W (without HDD)
Grynasis svoris8.14 kg (17.95 lb)
Bendras svoris12.24 kg (26.98 lb)
Produkto matmenys444 × 476 × 95 mm (17.48 × 18.74 × 3.74 in)
Pakuotės matmenys571 × 618 × 219 mm (22.48 × 24.33 × 8.62 in)
Darbinė temperatūra–10 °C to +55 °C (14 °F to 131 °F)
Darbo drėgmė10%–93% RH
InstaliacijaType Rack or desktop
SertifikataiFCC Part15 Class A; CE-EMC EN 55032:2020 Class A; EN 61000-3-2/3; EN 55024; EN 55035; EN 50130-4; CE-LVD EN 62368-1
