New

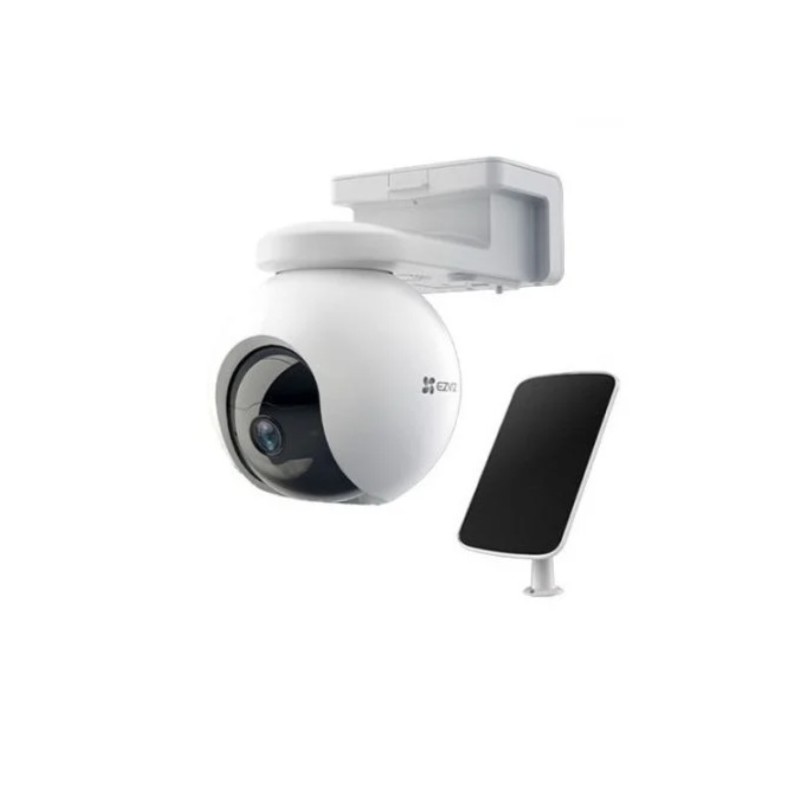

EZVIZ CS-EB8/SP 4G battery-powered outdoor PT camera with solar panel set (4K, with solar panel CS-PSP8, IP65)

SKU:CSEB8SP4KW4GA

Availability: Item in supplier warehouses

Type: battery-powered IP camera
Brand: EZVIZ
Model: CS-EB8/SP (4K, W4GA)
Connectivity: 4G/LTE, Wi-Fi 2.4 GHz
Battery: 10400 mAh
Resolution: 8 MP
Lens: 4 mm (83°)
Built-in GPS
Built-in two-way audio
Imaging: night color vision, black IR
Object detection: human, vehicle (AI)
Smart tracking
Solar panel model: CS-PSP8 (8 W)
Set with 8 W solar panel

€231.25

Tax included Delivery within 1–4 business days

Description
Product Details

General
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm: H 108.8°, V 56.4°, D 134.3°; 4 mm: H 93.3°, V 47.2°, D 114.2°
Lens MountM16
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 3.3 m to ∞; 4 mm: 3.8 m to ∞
DORI Range2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m; 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Supplement Light TypeWhite Light, IR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm
Main Stream50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) (*Third stream supported under certain settings)
Video CompressionMain: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 (*Third stream supported under certain settings)
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile, Main Profile, High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR, VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream
Audio TypeMono sound
Audio CompressionG.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Bit Rate64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise FilteringYes
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP
User/HostUp to 32 users (administrator, operator, user)
SecurityPassword protection, HTTPS encryption, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, HTTP/HTTPS auth (basic/digest), WSSE, RTSP over HTTPS, timeout settings, audit log, TLS 1.1/1.2/1.3, MAC authentication
Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in free: Chrome 80+, Firefox 80+, Edge 89+; Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters SwitchYes
Image SettingsRotate, saturation, brightness, contrast, sharpness, gain, white balance (via client or browser)
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR, Distortion Correction, Defog
SNR≥ 52 dB
Wide Dynamic Range (WDR)130 dB
Image StabilizationEIS
Privacy Mask4 programmable polygon masks
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-Board StorageMicroSD/SDHC/SDXC slot, up to 512 GB
Built-in SpeakerMax. 2 W, 110 dB @ 10 cm
Audio InterfaceBuilt-in dual microphone (-2U), 1 input (line in), 1 output (line out), max. 3.3 Vpp, 4.7 KΩ in / 100 Ω out, non-equilibrium
Alarm Interface1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes
Basic EventMotion detection (human/vehicle), video tampering, exception
Smart EventScene change detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm/recording/capture, audible warning, strobe light flashing
Face CaptureYes
Perimeter ProtectionLine crossing, intrusion, region entrance/exiting (human/vehicle)
Power12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø5.5 mm plug, reverse polarity protection; PoE IEEE 802.3at Class 4, max. 17 W
MaterialCover: metal, main body: metal
DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
General FunctionsHeartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language Support33 languages including English, Russian, German, French, Spanish, Chinese, Japanese, Korean, etc.
Flashing Light/SRB model: Red and Blue Light; /SL model: White Light
EMC CertificationsCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32:2015; IC: ICES-003 Issue 7; KC: KN32:2015, KN35:2015
Safety CertificationsUL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017
Environmental ComplianceCE-RoHS: 2011/65/EU
Protection RatingIP67 (IEC 60529-2013)
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
