- General

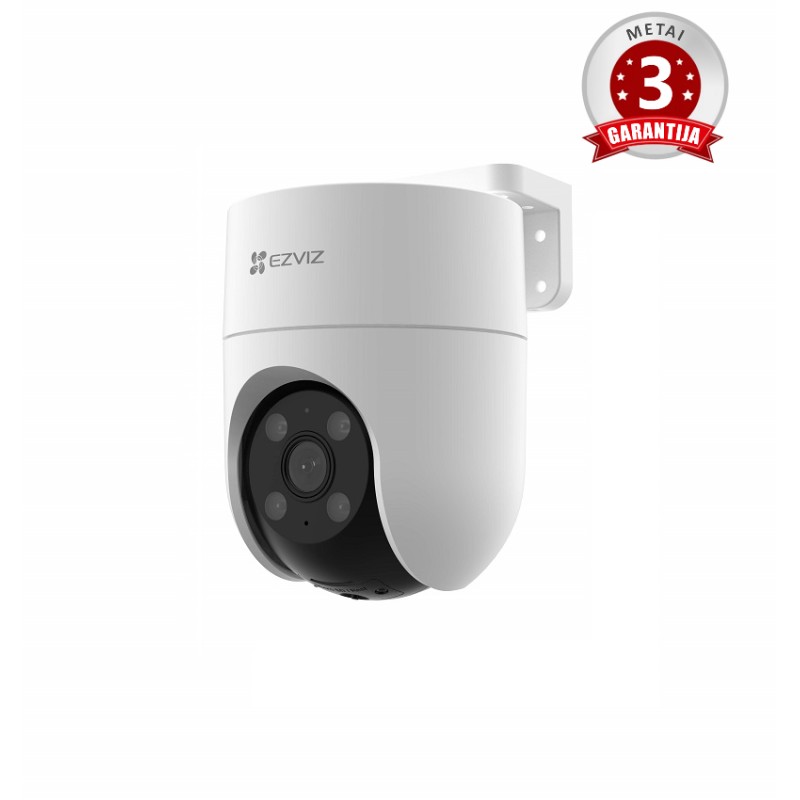

- ModelCS-H8c Pro (2K)
- Image Sensor1/2.8" Progressive Scan CMOS
- Shutter SpeedSelf-adaptive shutter
- Lens4mm@ F1.6, viewing angle: 49° (Vertical), 89° (Horizontal), 104° (Diagonal), 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)
- PT AnglePan: 350°, Tilt: 80°
- Minimum Illumination0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
- Lens MountM12
- DNR3D DNR
- WDRDigital WDR
- Black & White Night30m / 98ft
- Max Resolution2304*1296
- Frame RateMax: 30fps; Self-Adaptive during network transmission
- Video CompressionH.265 / H.264
- H.265 TypeMain Profile
- Video Bit RateUltra-HD; Hi-Def; Standard. Adaptive bit rate.
- Audio Bit RateSelf-Adaptive
- Wi-Fi StandardIEEE802.11b, 802.11g, 802.11n
- Frequency Range2.4 GHz ~ 2.4835 GHz
- Channel BandwidthSupports 20MHz
- SecurityWPA-PSK/WPA2-PSK
- Transmission Rate11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
- Wi-Fi PairingAP pairing
- ProtocolEZVIZ Cloud Proprietary Protocol
- Interface ProtocolEZVIZ Cloud Proprietary Protocol
- Wired NetworkRJ45 × 1 (10M / 100M Adaptive Ethernet Port)
- Smart AlarmAI-Powered Human Shape Detection
- Auto TrackingSupports
- Customized Alert AreaSupports
- Two-way TalkSupports
- Preset LocationsSupports
- General FunctionAnti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
- Local StorageSupports microSD Card (Up to 512 GB)
- Cloud StorageSupports EZVIZ CloudPlay storage (Subscription required)
- Operating Conditions-30°C to 50°C (-22°F to 122°F), Humidity 95% or less (non-condensing)
- IP GradeWeatherproof Design
- Power SupplyDC 12V/1A
- Power ConsumptionMAX. 12W
- Dimensions100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)
- Packaging Dimensions140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)
- WeightNet Weight: 516g; With Package: 820.5g (EU Standard Version)
CSH8CR2001K3WKFL4MM
